Whole plant equipment for beverages. Professional and one-stop solution tailored to your beverage production and packing requirement: from PET bottle blow molding to water treatment, bottling and packing

4 cavities semi-automatic blow molding machine,

for PET bottles up to 750ml

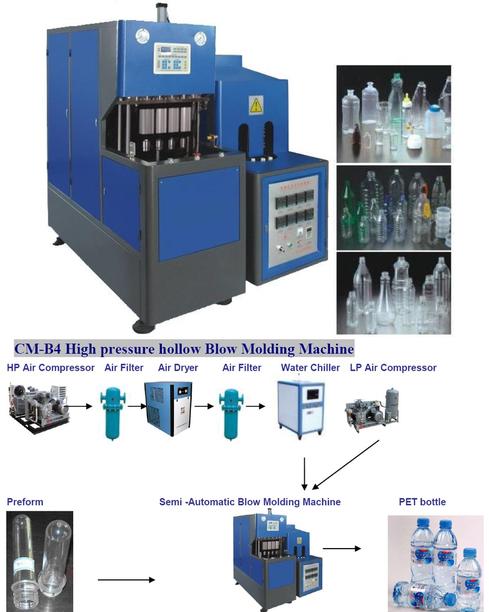

CM-B4 semi-automatic bottle blow molding machine is for producing PET plastic containers and bottles from 100ml to 750ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle, oil bottle, cosmetics bottles, wide-mouth bottle etc.

● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi- auto mode.
● The machine is compact in size with low investment, easy and safe to be operated by one .

bottle blowing machine 4 cavities
- - - + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
