KINGTOP INTERNATIONAL GROUP LIMITED

Whole plant equipment for beverages. Professional and one-stop solution tailored to your beverage production and packing requirement: from PET bottle blow molding to water treatment, bottling and packing

KINTL-6C2L Bottle Blow Molding Machine:

 Fully Automatic, 6 cavities, 7 servo-motors, for PET bottles up to 2L,

about 7000 to 7500 bottles/hour

Features:

Fully Automatic, 6 cavities, 7 servo-motors, for PET bottles up to 2L, about 7000 to 7500 bottles/hour
1. High speed and high quality, fully automatic, servo-motor driven, for production PET bottles up to 2L. KINTL-6C2L uses high quality parts: Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components,  Mitsubishi (Japan brand) PLC
2. Nontoxic conveyor belt to carry preforms

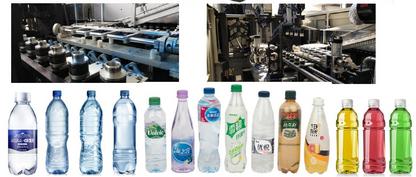

3. Produce PET Bottles ( such as: water bottles, milk bottles, oil bottles any shapes bottles and so on)
4. Infrared lamps
5. High safety. high speed with high efficiency.
6. full automatic working, one man is enough for operation the machine.
7. Stable performing with easy maintaining.
8. Imported PLC controlling and man-machine interface computer.
9. Japan Omron inspection sensor.

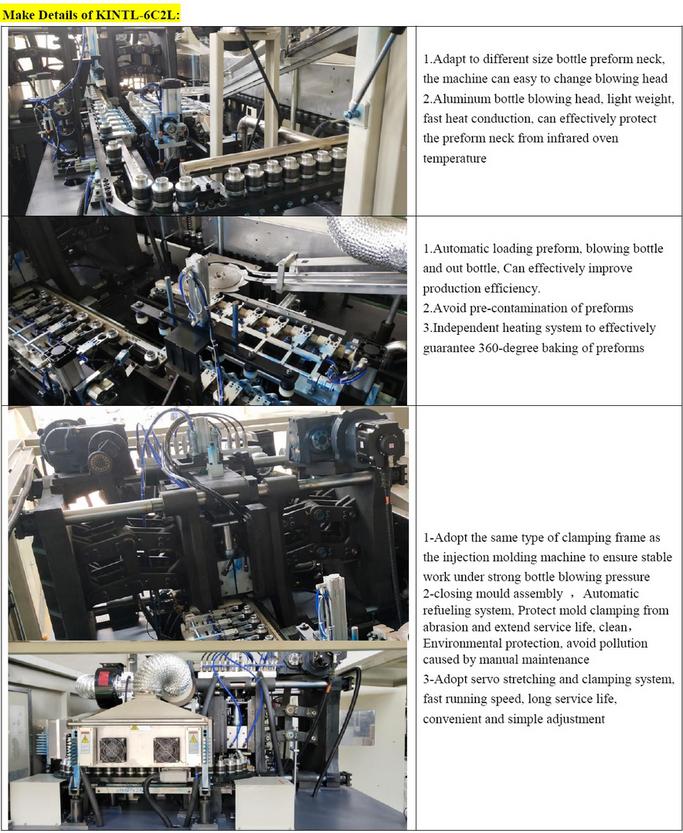

10. Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
11. Power saving design that can increase your profits.
12. Segregate type air controlling system, which is designed for avoiding waste pollution.

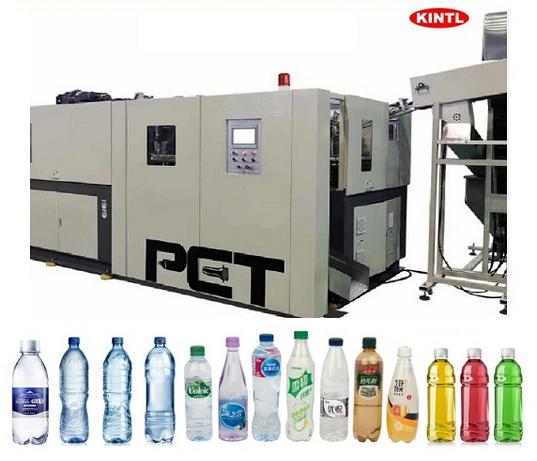

Full Automatic Bottle Blow Molding Machine

bottle blowing machine blow molding machine PET bottle
